A kind of Address

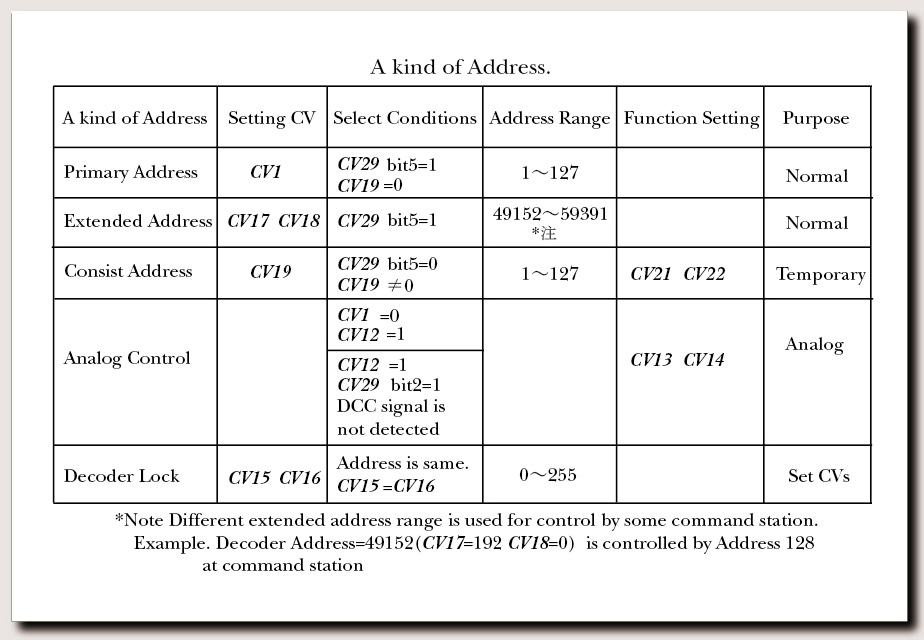

A Kind of Address
All decoders basically are connected with one line which is connected with power station. What decoder is controlled is decided by decoder address which is set in each decoder. A kind of address is shown below.

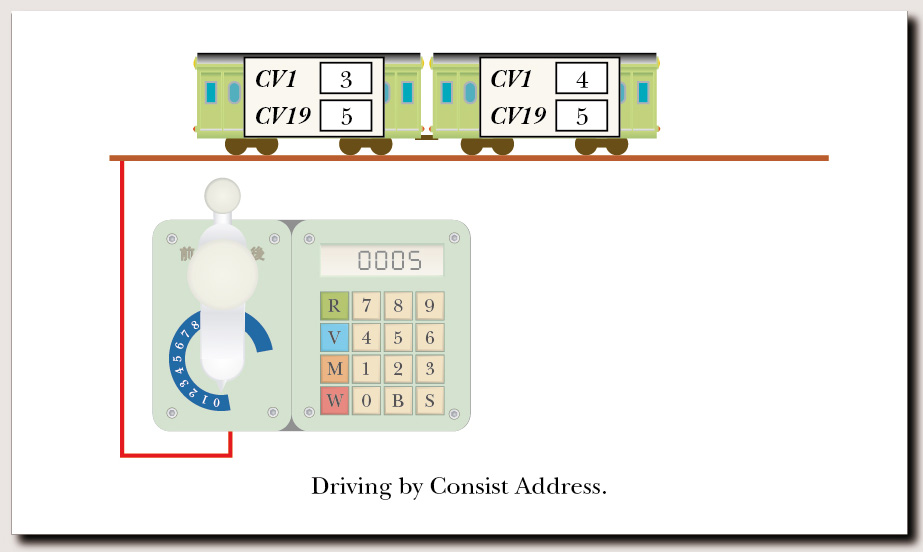

Consist Address
This is used for temporary address, when the primary address is used. This is used for running train by one address.
Analog Control
Voltage of rail decides speed of the vehicle in ananlog mode. It is not allowed the user to change function state in analog mode.
In analog control mode decoder performance will not be same as the performance decoder really has. Just consider this mode is only for test.

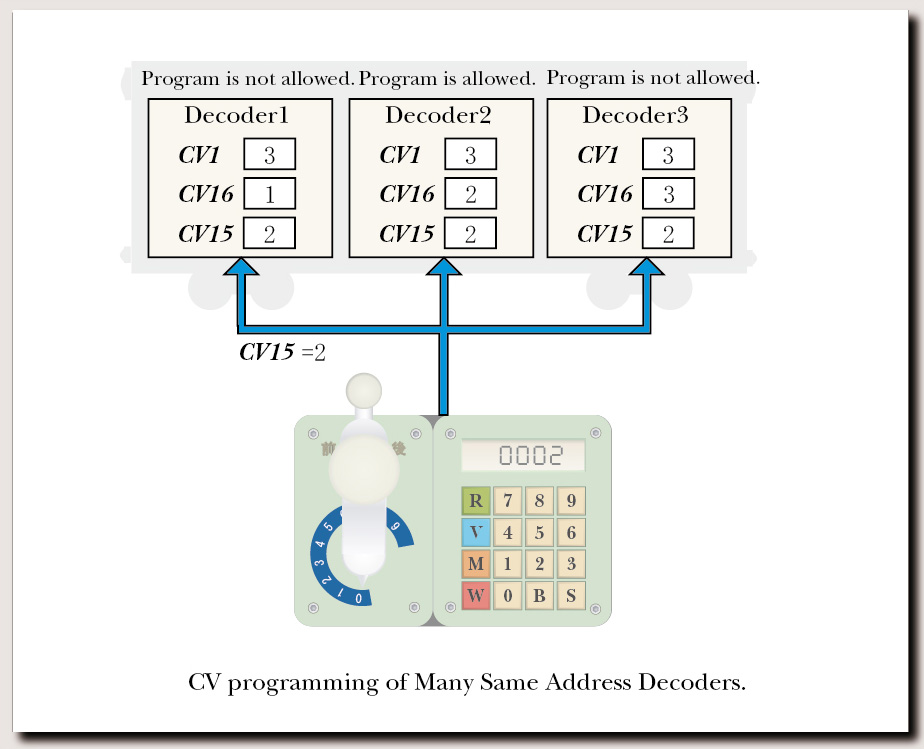

CV programming of Many Same Address Decoders
This is way that one particular decoder can be programmed among a lot of same address decoders are installed in one vehicle. Please set CV16 to distinct value before decoders are installed. CV15 has to be set to same value as CV16 before programming. The decoder in which CV15 value is as same as CV16 value can be programmed.
